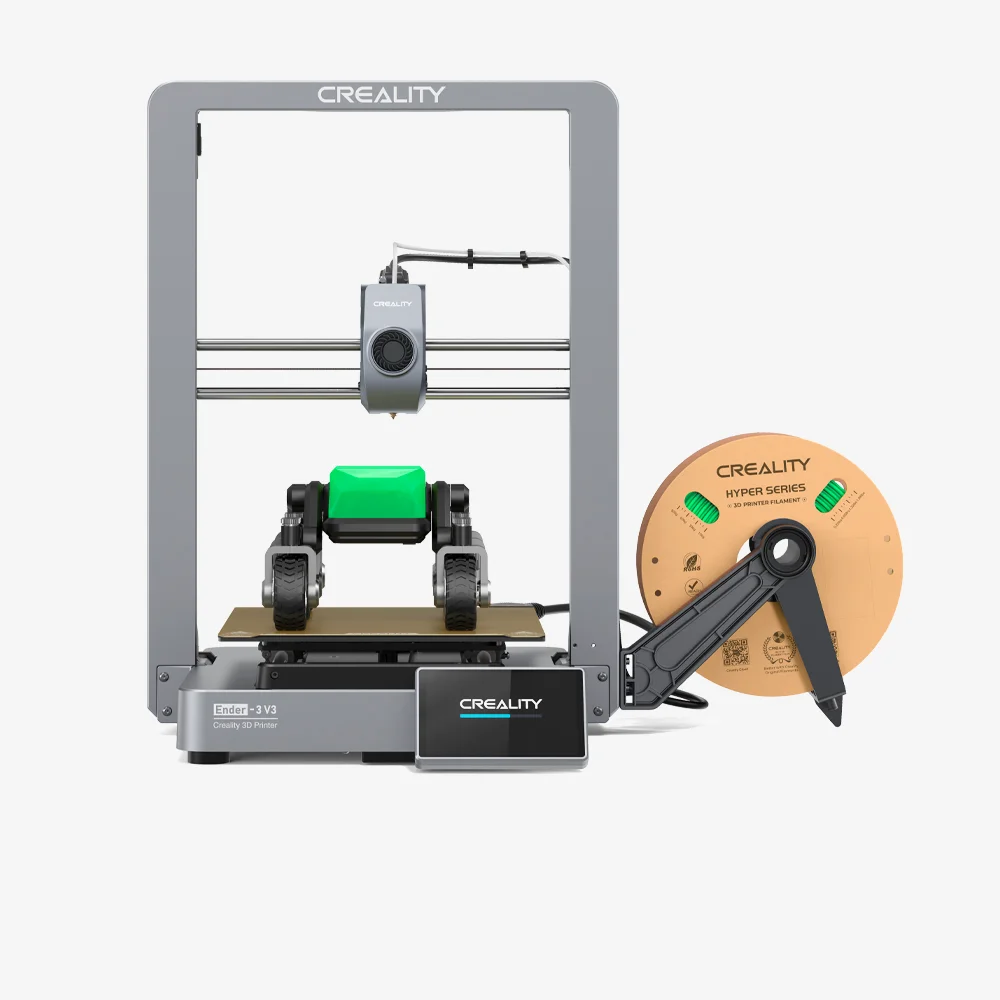

Ender-3 V3
CoreXZ 3D Printer
Fast & Stable in a New Form
Redefine Bedslinger
with Bold Innovations
Spectacular
Speed
Speed
CoreXZ for
max
600mm/s speed
max
600mm/s speed
Top-notch
Performance
Performance
Reliable
clog-free
extruder kit
clog-free
extruder kit
Superior
Part Cooling
Part Cooling
Two mighty fans
to cool the
fresh extrusion
to cool the
fresh extrusion
Sleek & Stable
Design
Design
New metal build
with integrated
die-cast parts
with integrated
die-cast parts
Easy
Maintenance
Maintenance
Quick-swap
tri-metal
nozzle
tri-metal
nozzle
Off-road Vehicle
Filament: Ender-PLA
Filament: Ender-PLA
Filament: Ender-PLA
Modern Buildings
Filament：PLA
Filament：PLA
Filament：PLA
Lantern
Filament：Hyper-PLA
Filament：Hyper-PLA
Filament：Hyper-PLA
New CoreXZ Motion System
Game-changing Tech,
Born for Speed
Born for Speed
An Epic Leap of Efficiency
Ender-3 V3 can print 12 times faster*
than a regular i3-style 3D printer,
a new benchmark for bed slingers.
It prints faster and better
with Creality Hyper PLA filaments.
than a regular i3-style 3D printer,
a new benchmark for bed slingers.
It prints faster and better
with Creality Hyper PLA filaments.
600mm/s*
Max printing speed
20000mm/s²*
Max acceleration
Benchy
Print Time: 13min*
Size: 60*31*48mm
Filament: Hyper-PLA
Rugged Box
Print Time: 2h14min*
Size: 157*123*55mm
Filament: CR-carbon
Fan
Print Time: 2h11min*
Size: 122*122*55mm
Filament: Ender-PLA
Data from Creality Lab. The typical printing speed is 300mm/s.
Coordinated
and Swift XZ Move
and Swift XZ Move
The X and Z axis of Ender-3 V3 are rigged together,
allowing two high-torque motors to work in unison
for quick response in the blink of an eye.
CoreXZ Kinematics
allowing two high-torque motors to work in unison
for quick response in the blink of an eye.
0.03s*
0 to 600mm/s acceleration
0 to 600mm/s acceleration
Data from Creality Lab.
XZ Belt Tensioning,
Fully Automated
Fully Automated
The XZ timing belts of Ender-3 V3
are tensioned automatically.
Belt slips or jams become
a thing of the past.
are tensioned automatically.
Belt slips or jams become
a thing of the past.
Accurate Z-axis,
Less Wobbling
Less Wobbling
Thanks to the precise linear rods and timing belts,
the Z-axis can position more accurately than ever.
It means minimal Z-banding in your 3D prints.
the Z-axis can position more accurately than ever.
It means minimal Z-banding in your 3D prints.
Z-axis positioning
accuracy ≤15㎛*
accuracy ≤15㎛*
Data from Creality Lab.
New Top-notch Extruder Kit
Reliable Extrusion with Quick-swap Nozzle
Robust Extruder,
Packing a Punch
Packing a Punch
The direct drive extruder of Ender-3 V3 is enhanced
by a bolster spring and a ball plunger.
It grips on filament tightly without slackening off.
Structure of the New Extruder
by a bolster spring and a ball plunger.
It grips on filament tightly without slackening off.
1000h+*
Clog-free Extrusion
Clog-free Extrusion
Data from Creality Lab.
60W Hotend Heater,
Delivering Full Power
Delivering Full Power
A powerful ceramic heater surrounds the hotend.
It can fully melt ABS, PETG and other
high-temp filaments on the fly.
It can fully melt ABS, PETG and other
high-temp filaments on the fly.
75s
Heating from 0 to 300℃
Heating from 0 to 300℃
Data from Creality Lab.
Tri-metal "Unicorn" Nozzle,
Quick to Swap
Quick to Swap
The durable steel-tipped copper nozzle is integrated with a titanium alloy heatbreak.
It blocks heatcreep and can be swapped super easily.
Structure of the Tri-metal Nozzle
It blocks heatcreep and can be swapped super easily.
One-handed Swap
Great Durability
Smooth Feeding
New Metal Build with Die-cast Parts
Aesthetics Integrated
with Stability
with Stability
The gantry and base are each a single
aluminum alloy piece made by integrated die-casting.
With fewer bolts and seams,
Ender-3 V3 is incredibly solid and stable.
aluminum alloy piece made by integrated die-casting.
With fewer bolts and seams,
Ender-3 V3 is incredibly solid and stable.
Tough Aerospace
Aluminum Alloy
Aluminum Alloy
Both the gantry and base use ADC12 aluminum alloy,
boasting great mechanical strength.
boasting great mechanical strength.
Tensile Strength ≥205MPa*
Brinell Hardness ≥75HBW*
Data from Creality Lab.
Groovy Curves
Around Every Corner
Around Every Corner
The edges and corners are softened with minor curves,
so that Ender-3 V3 looks more integral and elegant.
so that Ender-3 V3 looks more integral and elegant.
Two Fans for
Instant Model Cooling
Instant Model Cooling
Two fans, front and back on the printhead,
cool the freshly printed section rapidly and evenly.
Gone with the wind is any drooping, warping, or stringing.
Moreover, dynamic balancing is adopted
for printhead fans for reduced vibrations.
Rationale of Dynamic Balancing
cool the freshly printed section rapidly and evenly.
Gone with the wind is any drooping, warping, or stringing.
Moreover, dynamic balancing is adopted
for printhead fans for reduced vibrations.
Ender-3 V3
Regular 3D Printer
Ingenious 3D Prints,
Personalizing Your Life
Personalizing Your Life
New Experience,
Minimal Operations
Minimal Operations
Quick Assembly Like a Breeze
Ender-3 V3 comes to you
in highly pre-assembled modules.
Even a first-time 3D printer user
can put it together within 10 minutes*.
in highly pre-assembled modules.
Even a first-time 3D printer user
can put it together within 10 minutes*.
Data from Creality Lab.
Base Component
Gantry Assembly
1
Gantry Assembly
Base Component
2
Touch Screen
3
Filament Spool Holder
4
Data from Creality Lab.
Auto Calibration,
No More Paper Test
No More Paper Test
Give it a tap and walk away.
The auto calibration gets everything ready for you.
No need to pull a paper or turn any screws.
The auto calibration gets everything ready for you.
No need to pull a paper or turn any screws.
Input Shaping
ON
ON
Input Shaping
OFF
OFF
Nifty HD
Touch Screen
Touch Screen
A 4.3" screen gives seamless touch response.
With HD resolution*, it displays temperatures
leveling process, and model preview vividly
by motion graphics.
With HD resolution*, it displays temperatures
leveling process, and model preview vividly
by motion graphics.
*800×480px, 216.97PPI
Flexible Textured
PEI Plate
PEI Plate
The PEI coating makes it sticky to models
printed in a variety of materials.
The spring steel base allows you to release models
with a slight bend.
printed in a variety of materials.
The spring steel base allows you to release models
with a slight bend.
Creality OS
& Superb Software
& Superb Software
True Freedom to Create and Share
Optional Accessories
of Great Value
of Great Value
Ender-3 V3 enjoys a lot of quality optional accessories.
And it is open-source for easy DIY.
More Official Accessories
And it is open-source for easy DIY.
Creality Space
Pi Filament Dryer
Pi Filament Dryer
One-touch temperature settings
for efficient drying
of 11 types of filaments.
for efficient drying
of 11 types of filaments.
Hyper PLA filament
Lower viscosity
for less stringing;
faster to cool down
for crisp shapes.
for less stringing;
faster to cool down
for crisp shapes.
Creality X E3D Nozzle
Selected nozzle,
ensuring great compatibility
and wonderful performance.
ensuring great compatibility
and wonderful performance.
Specifications
Build Volume
220*220*250mm
Input Shaping
Yes (G-sensor included)
Product Dimensions
358*374*498mm
Leveling Mode
Auto Leveling
Package Dimensions
541*418*245mm
Display Screen
4.3" HD color touch screen
Net Weight
7.83kg
Mainboard
32-bit
Printing Speed
≤600mm/s
Connectivity
WiFi
Acceleration
≤20000mm/s²
Printable File Format
G-code
Printing Accuracy
±0.2mm
Power Loss Recovery
Yes
Layer Height
0.1-0.35mm
Filament Run-out Sensor
Yes
Filament Diameter
1.75mm
AI Camera
Optional
File Transfer
USB drive / WLAN / Creality Cloud
Rated Voltage
100-120V~, 200-240V~, 50/60Hz
Nozzle Diameter
0.4mm
Rated Power
350W
Build Plate
PEI flexible build plate
Slicing Software
Creality Print
Nozzle Kit
Quick-swap nozzle (hardened steel tip) integrated with heatbreak
File Formats for Slicing
STL, OBJ, 3MF
Extruder
New high-speed direct drive extruder
Supported Filaments
PLA, TPU, PETG, ABS, PLA-CF,
PETG-CF, CR-carbon
PETG-CF, CR-carbon
Nozzle Temperature
≤300°C
Heatbed Temperature
≤110°C
UI Languages
中文/English/Deutsch/Español/
Français/Italiano/
Português/Русский/Turkish/日本語/한국어
Français/Italiano/
Português/Русский/Turkish/日本語/한국어
CoreXZ Kinematics
1/3 Lighter Motion Components
Ender-3 V3: 600g
(printhead + timing belts)
(printhead + timing belts)
Ender-3 V2: 900g
(printhead + timing belts+ V wheels + X motor)
(printhead + timing belts+ V wheels + X motor)
Equations of Motion
Upgrades
of the Extruder
of the Extruder
Side spring, bolstering the grip of extruding gears.
Ball plunger, locking the extruder lever in place.
Powder metallurgy lever, hard to deform, keeping the extrusion force.
Structure of the
Tri-metal Nozzle
Tri-metal Nozzle
Copper Alloy
Dissipates heat
rapidly
Dissipates heat
rapidly
Titanium Alloy
Blocks heat creep
Blocks heat creep
Copper Alloy
Melts filament
quickly
Melts filament
quickly
Hardened Steel
Resistance to wear,
6 times durability*.
Resistance to wear,
6 times durability*.
Data from Creality Lab.
Dynamic Balancing
The front part cooling fan and
the hotend
cooling fan are dynamically
balanced
by accurate weight adjustment.
So they are less likely to wobble,
minimizing ringing or ghosting.
the hotend
cooling fan are dynamically
balanced
by accurate weight adjustment.
So they are less likely to wobble,
minimizing ringing or ghosting.
Dynamic Unbalance
Dynamic Balance
Axis of rotation
Principal inertia axis
Center of mass
Axis of rotation
Principal inertia axis
Center of mass
